Osmotech is one of the UK's leading suppliers of bow and stern thrusters, stabilizers, marine systems and passerelles and gangways.

DC Thrusters

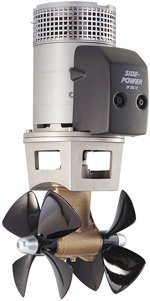

SE 30/125S

Thrust at 10.5V / 21V* (kg • lbs) 30 • 66
Thrust at 12V / 24V* (kg • lbs) 40 • 88
Typical boat size (ft • m) 20′ – 28′ • 6 – 8.5
Tunnel I.D. (mm in) 125 • 4.92″
Propulsion system Single

Power at 10.5V / 21V* (kw • Hp) 1.5 • 2
For DC system (V) 12
Weight (kg • lbs) 9.5 • 21

Min. Batt. Cap (CCA** 12/24V) 200

Item Code 12V
SE30/125S



Side-Power SE40.png

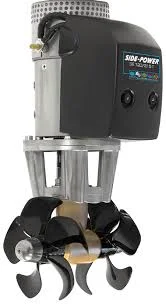

SE 40/125 S

Thrust at 10.5V / 21V* (kg • lbs) 40 • 88
Thrust at 12V / 24V* (kg • lbs) 48 • 105
Typical boat size (ft • m) 26′ – 34′ • 8 – 10.5

Tunnel I.D. (mm in) 125 • 4.92″
Propulsion system Single
Power at 10.5V / 21V* (kw • Hp )2.2 • 3
For DC system (V) 12
Weight (kg • lbs) 10 • 22

Min. Batt. Cap (CCA** 12/24V) 300

Item Code 12V
SE40/125S

Side-Power SE60.png

SE 60/185S

Thrust at 10.5V / 21V* (kg • lbs) 60 • 132
Thrust at 12V / 24V* (kg • lbs) 73 • 161
Typical boat size (ft • m) 29′ – 38′ • 9 – 12
Tunnel I.D. (mm in) 185 • 7.3″
Propulsion system Single
Power at 10.5V / 21V* (kw • Hp) 31 • 4
For DC system (V) 12/24
Weight (kg • lbs) 16 • 35
Min. Batt. Cap (CCA** 12/24V) 350 • 175

Item Code 12VSE60/185S-12V(-121P)
Item Code 24V
SE60/185S-12V(-241P)

Side-Power SE80.png

SE 80/185 T

Thrust at 10.5V / 21V* (kg • lbs)80 • 176
hrust at 12V / 24V* (kg • lbs)
96 • 212
Typical boat size (ft • m)35′ – 55′ • 12 – 17
Tunnel I.D. (mm in)185 • 7.3″
Propulsion systemTwin

Power at 10.5V / 21V* (kw • Hp)4.4 • 6
For DC system (V)12/24v
Weight (kg • lbs)20 • 44
Min. Batt. Cap (CCA** 12/24V)550/300

Item Code 12VSE80/185T-12V(-121P)
Item Code 24V
SE80-185T-24V(-121P)



SE 100/185 T

Thrust at 10.5V / 21V* (kg • lbs) 100 • 220
Thrust at 12V / 24V* (kg • lbs) 116 • 256
Typical boat size (ft • m) 35′ – 48′ • 10 – 15
Tunnel I.D. (mm in) 185 • 7.3″
Propulsion system Twin
Power at 10.5V / 21V* (kw • Hp) 6.3 • 8.4
For DC system (V) 12/24
Weight (kg • lbs) 31 • 68

Min. Batt. Cap (CCA** 12/24V) 750/400

Item Code 12VSE100/185T-12V(-121P)
Item Code 24V
SE100/185T-24V(-241P)

SE 120/215 T

Thrust at 10.5V / 21V* (kg • lbs) 120 • 264
Thrust at 12V / 24V* (kg • lbs) 139 • 306
Typical boat size (ft • m) 42′ – 60′ • 13 – 18
Tunnel I.D. (mm in) 215 • 8.46″
Propulsion system Twin
Power at 10.5V / 21V* (kw • Hp )6.4 • 8.46″
For DC system (V) 24

Weight (kg • lbs) 34 • 74
Min. Batt. Cap (CCA** 12/24V) 400

Item Code 24V
SE120/215T (-IP)


SE 130/250 T

Thrust at 10.5V / 21V* (kg • lbs) 130 • 284
Thrust at 12V / 24V* (kg • lbs) 160 • 352
Typical boat size (ft • m) 42′ – 62′ • 13 – 19
Tunnel I.D. (mm in )
250 • 9.8″
Propulsion system Twin
Power at 10.5V / 21V* (kw • Hp) 6.5 • 8.7
For DC system (V) 12/24
Weight (kg • lbs) 37 • 77
Min. Batt. Cap (CCA** 12/24V) 500/250

Item Code 12VSE130/250T-12V(-121P)
Item Code 24V
SE130/250T-24V(-241P)

SE 150/215 T

Thrust at 10.5V / 21V* (kg • lbs) 150 • 330
Thrust at 12V / 24V* (kg • lbs) 182 • 400
Typical boat size (ft • m) 44′ – 64′ • 14 – 20

Tunnel I.D. (mm in) 215 • 8.46″
Propulsion system Twin
Power at 10.5V / 21V* (kw • Hp) 8.8 • 11.8
For DC system (V) 24
Weight (kg • lbs) 38 • 79
Min. Batt. Cap (CCA** 12/24V) 560




SE 170/250 TC

Thrust at 10.5V / 21V* (kg • lbs) 170 • 374
Thrust at 12V / 24V* (kg • lbs) 210 • 462
Typical boat size (ft • m) 50′ – 70′ • 15 – 22
Tunnel I.D. (mm in) 250 • 9.8″
Propulsion system Twin Counter rot.

Power at 10.5V / 21V* (kw • Hp) 8 • 10.7
For DC system (V) 24
Weight (kg • lbs) 44 • 97
Min. Batt. Cap (CCA** 12/24V)

Item Code 24V
SE170/250TC(-IP)

SE 210/250 TC

Thrust at 10.5V / 21V* (kg • lbs) 210 • 462
Thrust at 12V / 24V* (kg • lbs) 250 • 550

Typical boat size (ft • m) 55′ – 78′ • 17 – 24
Tunnel I.D. (mm in) 250 • 9.8″

Propulsion system Twin Counter rot.
Power at 10.5V / 21V* (kw • Hp) 10 • 13.15
For DC system (V) 24

Weight (kg • lbs) 68 •150
Min. Batt. Cap (CCA** 12/24V) 550

Item Code 24V
SE210/250TC(-IP)

SE 240 TCi

Thrust at 10.5V / 21V* (kg • lbs)240 • 528
Thrust at 12V / 24V* (kg • lbs)300 • 660
Typical boat size (ft • m)60′ – 84′ • 18 – 25
Tunnel I.D. (mm in)300 • 11.8″
Propulsion systemTwin Counter rot.

Power at 10.5V / 21V* (kw • Hp)11.4 • 15.5
For DC system (V)24
Weight (kg • lbs)70 • 154

Min. Batt. Cap (CCA** 12/24V)700

Item Code 24V
SP240TCi

SP 285 TCi

Thrust at 10.5V / 21V* (kg • lbs)285 • 627
Thrust at 12V / 24V* (kg • lbs)340 • 748
Typical boat size (ft • m)74′ – 100 • 22 – 30
Tunnel I.D. (mm in)300 • 11.8″
Propulsion systemTwin Counter rot.
Power at 10.5V / 21V* (kw • Hp)15 • 20
For DC system (V)24
Weight (kg • lbs)73 • 160

Min. Batt. Cap (CCA** 12/24V)2×450 – 24V

Item Code 24V
SP285TCi
