Osmotech is one of the UK's leading suppliers of bow and stern thrusters, stabilizers, marine systems and passerelles and gangways.

External & Retractable

SR Range



SR80/185T
Thrust at 10.5V/21V* (kg ·lbs) 80 · 176
Thrust at 12V/24V* (kg ·lbs) 96 · 212
Typical boat size (ft· m) 35 - 48 · 10 - 15
Tunnel I.D. (mm in) 185 · 7.3"
Propulsion system Twin
Power at 10.5V/21V* (kw ·Hp) 4.4 · 6
For DC system (V) 12/24
Weight (kg ·lbs) 31 · 68

Item Code 12V SR80/185T-12V
Item Code 24V SR80/185T-24V



SR100/185T
Thrust at 10.5V/21V* (kg · lbs) 100 · 220
Thrust at 12V/24V* (kg · lbs) 116 · 256
Typical boat size (ft · m) 35 - 55 · 12 - 17
Tunnel I.D. (mm in) 185 · 7.3"
Propulsion system Twin
Power at 10.5V/21V* (kw · Hp) 6.3 · 8.4
For DC system (V) 12/24
Weight (kg · lbs) 44 · 97
Min. Batt. Cap (CCA 12/24V) 750/400

Item Code 12VSR100/185T-12V
Item Code 24VSR100/185T-24V



SRV80/185T
Thrust at 10.5V/21V* (kg · lbs) 80 · 176
Thrust at 12V/24V* (kg · lbs) 96 · 212
Typical boat size (ft · m) 35 - 48 · 10 - 15
Tunnel I.D. (mm in) 185 · 7.3"
Propulsion system Twin
Power at 10.5V/21V* (kw · Hp) 4.4 · 6
For DC system (V) 12/24
Weight (kg · lbs) 31 · 68
Min. Batt. Cap (CCA 12/24V) 550/300

Item Code 12VSRV80/185T-12V
Item Code 24VSRV80/185T-24V




SRV100/185T
Thrust at 10.5V/21V* (kg · lbs) 100 · 220
Thrust at 12V/24V* (kg · lbs) 116 · 256
Typical boat size (ft · m) 35 - 55 · 12 - 17
Tunnel I.D. (mm in) 185 · 7.3"
Propulsion system Twin
Power at 10.5V/21V* (kw · Hp) 6.3 · 8.4
For DC system (V) 12/24
Weight (kg · lbs) 44 · 97
Min. Batt. Cap (CCA 12/24V) 750/400

Item Code 12V SRV100/185T-12V
Item Code 24V SRV100/185T-24V



SR130/250T
Thrust at 10.5V/21V* (kg ·lbs) 130 · 284
Thrust at 12V/24V* (kg ·lbs) 160 · 352
Typical boat size (ft· m) 42 - 62 · 13 - 19
Tunnel I.D. (mm in) 250 · 9.8"
Propulsion system Twin
Power at 10.5V/21V* (kw ·Hp) 6.5 · 8.7
For DC system (V) 12/24
Weight (kg ·lbs) 82 · 181


Item Code 12VSRV80/185T-12V
Item Code 24VSRV80/185T-24V


SR 170/250TC
Thrust at 21V* (kg · lbs) 170 · 374
Thrust at 24V* (kg · lbs) 210 · 462
Typical boat size (ft · m) 50 - 70 · 15 - 22
Tunnel I.D. (mm in) 250 · 9.8"
Propulsion system Twin Counter rot.
Power at 21V* (kw · Hp) 8 · 10.7
For DC system (V) 24
Weight (kg • lbs) 88 · 194
Min. Batt. Cap (CCA 24V) 550

Item Code 24VSR170/250T-24V



SR 210/250TC
Thrust at /21V* (kg · lbs) 210 · 462
Thrust at 24V* (kg · lbs) 250 · 550
Typical boat size (ft • m) 55 - 78 · 17 - 24
Tunnel I.D. (mm in) 250 · 9.8"
Propulsion system Twin Counter rot.
Power at 21V* (kw · Hp) 11 · 14.5
For DC system (V) 24
Weight (kg • lbs) 112 · 247
Min. Batt. Cap (CCA 12/24V) 650

Item Code 24V SR210/250T-24V







EX SERIES RANGE

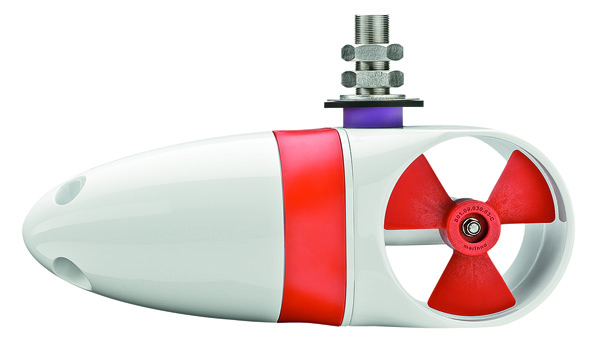

EX Single

EX SINGLE is available in 4 different effect versions. Independently of the hull shape, propulsion and depth, EX SINGLE fits on every boat with lengths from 6 to 15 m, for bow installation as well as stern installations.

For 24V models, we can offer a Converter which can charge a 24V battery package from a 12V system.

Length: 55 cm; Ø: 16,5 cm, Weight: 19,5 kg

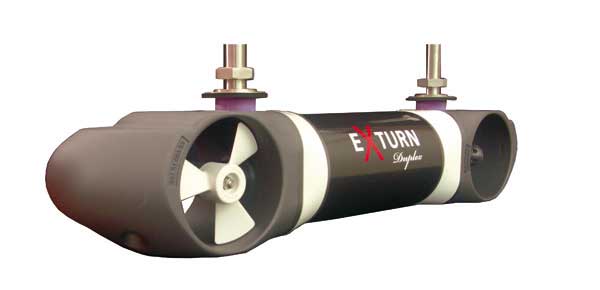

EX Dual

EX DUAL is equipped with two propellers and two motors and is available in two different versions for boats from 14 to 20 m in length and fits perfectly for both bow and stern installation.

For EX180D, we offer a Converter which can charge a 24V battery package for boats fitted with a 12V system onboard.

Length: 98 cm; Ø: 16,5 cm, Weight: 35 kg

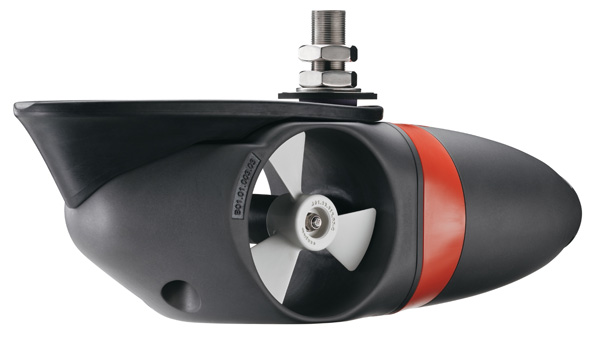

EX Compact

EX COMPACT is specifically designed for the tail assembly at power boats and is the solution for vertical mounting at the transom. The basic technology is the same as in the other models of the EX series, but the total length was shortened by 110 mm – The result is less space requirement and more installation flexibility .

For 24V models, we can offer a Converter which can charge a 24V battery package from a 12V system.

Length: 44 cm; Ø: 16,5 cm, Weight: 12 kg
