Proportional Power Controller

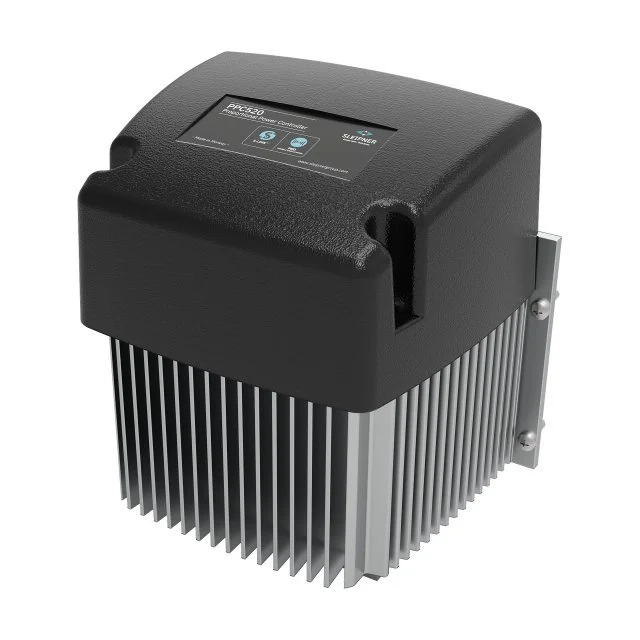

The PPC520 are rated for a maximum output current of 500A, which makes this model compatible with all 12V models up to, and including, SE60 (3,1KW) and for 24V models up to, and including, SE130 (6,5KW).

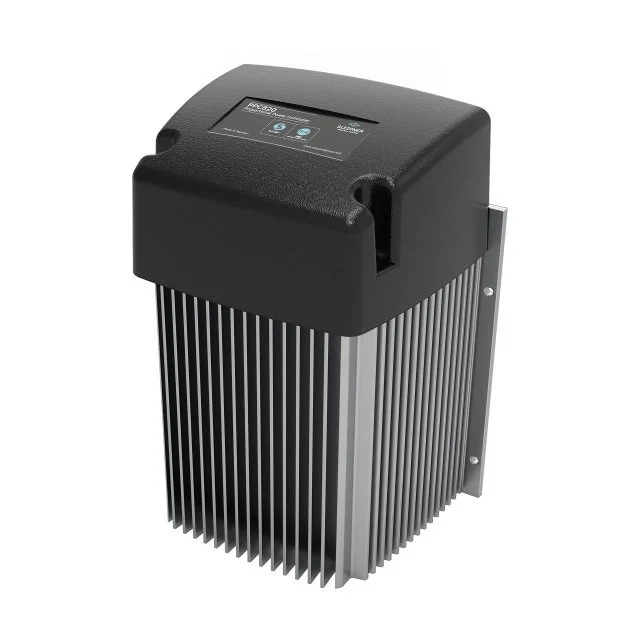

The PPC820 are rated for a maximum output current of 1000A and compatible with every other larger 12 & 24V models. 48V thrusters are not supported.
The new PPC models will now store historical fault codes as well as usage data (running time, number of times relays have engaged).
Please note that the PJC control panels must be running software v2.018 or later to support these new units.
