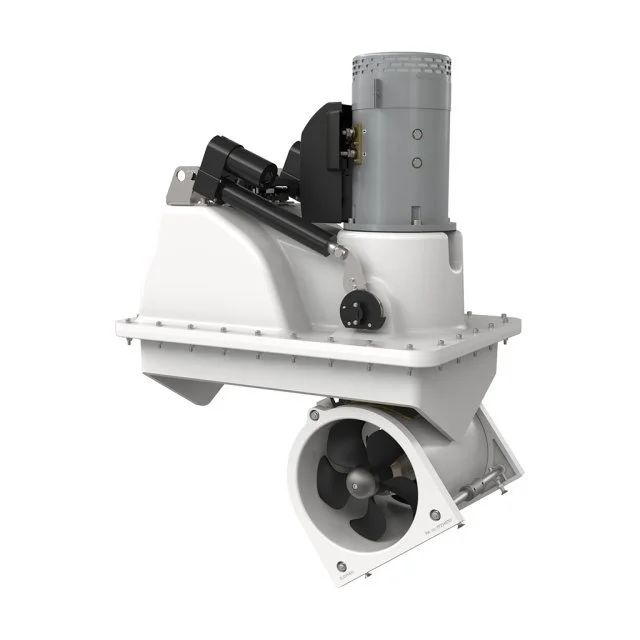

SRV300 Vertical Retract 48V

Intelligent Power Control

The Side Power unique thruster controller that intelligently protects the thruster from potential inherent problems in all high current applications as well as user faults. It includes several important safety features imperative in a product with such high power, run by DC electrics, as a thruster.

• Provides delay between drive directions

• Monitors solenoid functions to reduce the chance of solenoid lock-in

• Will stop the thruster in case of a lockedin solenoid, without extra user action and even without controlling a main switch.

Q-prop™

The new 5 blade special skew propellers are the result of over 2 years of development work and thousands of tests. They have been designed to reduce the noise level, while maintaining the exceptional efficiency of the old 4 blade Side-Power propellers. This goal was achieved, and we even chose to make them a little bit more aggressive on some models, increasing the thrust on some thrusters about 5%. Please see individual information on each new thruster for more details.

• Noise reductions of up to 75% measured in controlled environments

• The expected and tested normal noise reduction in average installations: 20-40%

• Will be delivered on all Side-Power models except models with 300mm and 385mm tunnel diameter

• Upgrade kits are available for most SP series thrusters with special adaptors

External oil tank for easy access

The thruster gearleg is filled with oil from a remote reservoir located above the waterline. This generates overpressure, making an effective seal against water intrusion in the gear leg.

• Separate oil reservoir placed above the waterline

• Allows easy access for oil changes

• Having the advantage to be able to change oil in units used commercially, with hundreds of running hours per year

Twin Propellers

The twin propeller system can give more thrust than a single propeller system in the same tunnel diameter. This is our choice for our mid-range models where high thrust is required in a small tunnel diameter. Due to the compact design and high performance, the twin models have become the thrusters of choice among boat builders around the world.

Galvanic Separation

The gearhouse / drive legs of most Side-Power DC Electric thrusters are now fully galvanically isolated / separated from the electric motor and motor bracket. This ensures that even if there is an accidental short circuit or a current leak for other reasons, the immersed parts are not effected as they could be with direct electric contact.

• Achieved by composite bushings around the bolts and beneath the washers and a bushing in the motor bracket electrically isolating the drive housing from the motor bracket.

• Available on DC electric models with flexible couplers only, where the flexible coupler provides galvanic separation of the motor and gearleg shaft.
